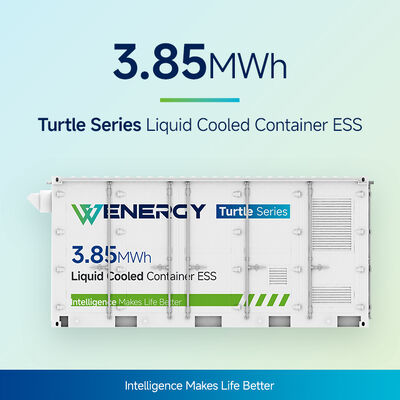

| Brand Name: | Wenergy |
| Model Number: | Turtle 3.85MWh |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
Cost-Effective and Adaptive Design
Multi-Scenario Support: Optimized for peak shaving, valley filling, and auxiliary services, significantly reducing energy costs.
Smart Algorithms and Temperature Control: Advanced sensing, big data analytics, and AI-driven algorithms optimize system efficiency, lower LCOE, and ensure stable cell performance.
Unmatched Safety and Reliability
Comprehensive Monitoring and Fault Isolation: Cloud-edge-device synergy enables rapid fault diagnosis, while multi-level protection ensures coordinated component and system response.
AI-Powered Thermal Management: Enhances system reliability and extends battery lifespan.
Full Lifecycle Oversight: Guarantees consistent performance and long-term quality.
Intelligent and Grid-Friendly Operation
Fast Grid Support: Provides active grid stabilization and rapid response to fluctuations.
Efficient and Flexible Integration: Intelligent algorithms maximize efficiency and system lifespan, while multiple access options ensure seamless connectivity.
Modular and Scalable Solutions
Easy Deployment and Maintenance: Modular design simplifies installation and upkeep.
High Scalability: Compatible with growing energy demands and supports parallel operation for wide capacity coverage.
| Model | Turtle CL 3.85 |
|---|---|
| Battery Type | LFP 314Ah |
| Rated Energy | 3.85 MWh |
| Rated Power | 2 MW |
| DC Rated Voltage | 1228.8V |
| DC Voltage Range | 1075.2V ~ 1382.4V |
| Max. Efficiency of the System | >89% |
| IP Protection Level | IP55 |
| Weight (kg) | 36,000 |
| Cooling Type | Liquid Cooling |
| Noise | <75 dB (1m away from the System) |
| Communication Interface | Wired: LAN, CAN, RS485 |
| Communication Protocol | Modbus TCP |
| System Certification | IEC 60529, IEC 60730, IEC 62619, IEC 62933, IEC 62477, IEC 63056, IEC/EN 61000, UL 1973, UL 9540A, UL 9540, CE Marking, UN 38.3, TÜV Certification, DNV Certification, NFPA69, FCC Part 15B. |
The system is composed of battery clusters (10 clusters, each with 8 modules), a high-voltage box, a combiner cabinet, a thermal management system, and a fire protection system. The system includes external communication capabilities, enabling data transmission with external equipment such as the HMI, PCS, and fire protection devices, ensuring safe and stable long-term operation.
| Serial Number | Name |
|---|---|
| 1 | Audible and Visual Alarm |
| 2 | Nameplate |
| 3 | Fire Control Box |
| 4 | Earth Connection Point |
| 5 | Mounting Angle (Optional) |
| 6 | Air Inlet |
| 7 | Air Outlet |
| 8 | Fire Outlet |
| 9 | Combiner Cabinet |
| 10 | Container Box |
| 11 | Battery Module |
| 12 | Thermal Management System |
| 13 | Fire Protection System |
| 14 | High Voltage Box PDU |
| 15 | Liquid Cooling Unit |
Within our manufacturing facility, we specialize in the research and production of battery energy storage systems, offering OEM and ODM services alongside our standard product line.
Contact us today to learn how our solutions can meet your needs. Request a quote or schedule a consultation with our experts!
