| Brand Name: | Wenergy |
| Model Number: | CL2.5 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,D/P,T/T |

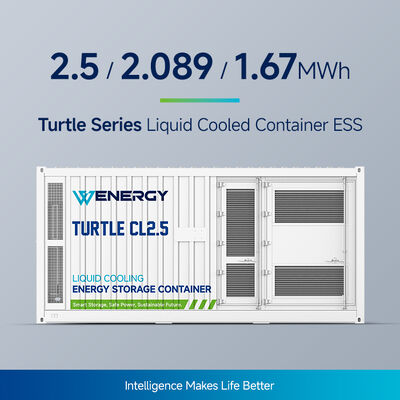

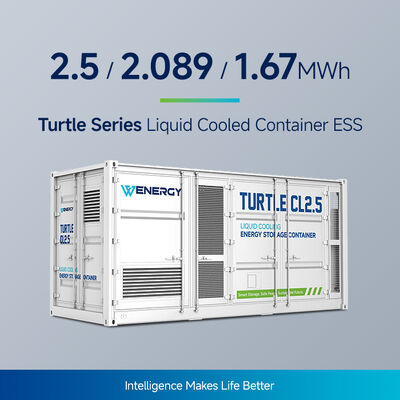

| Model | Turtle CL2.5 | Turtle CL2.089 | Turtle CL1.67 |
|---|---|---|---|
| DC Side Parameters | |||
| Battery Type | LFP 314Ah | ||
| Configuration | 2.507MWh/6P416S | 2.089MWh/5P416S | 1.67MWh/4P416S |
| DC Voltage Range | 1164.8V~1497.6V | ||
| PCS Parameters | |||
| Quantity | 6 | 5 | 4 |
| Power | 1350kW | 1125kW | 900kW |
| Grid/Diesel Generator Port | |||
| AC Rated Input Power | 1000kW | 1000kW | 900kW |
| Rated Voltage | 380V,50/60Hz | ||
| PV Port | |||
| AC Rated Input Power | 1000kW | 1000kW | 900kW |
| Rated Voltage | 380V,50/60Hz | ||
| Load Port | |||
| AC Rated Output Power | 1000kW | 1000kW | 900kW |
| Rated Voltage | 380V,50/60Hz | ||
| Basic System Parameters | |||
| IP Protection Level | IP54 (Battery Compartment) | ||
| Corrosion-proof Grade | C4H | ||
| Cooling Type | Intelligent Liquid Cooling (Automatic Refiling Function) | ||
| Operation Temp. Range | -25℃~55℃ | ||
| Working Altitude | ≤2000m (>2000m Derating) | ||
| Communication Interface | CAN, RS485, Ethernet | ||
| Dimension (W*D*H) | 6058*2458*2896mm | ||
| Fire Safety Configuration | Aerosol Fire Protection, Smoke/Temperature Detection, Explosion-proof Ventilation | ||
| Weight | 27.5t | 25t | 22.5t |
