Stars CA100 Series Air-cooled Hybrid Commercial Battery Storage System with 90% Round Trip Efficiency IP55 Ingress Rating and Modular Design

Name: Stars CA100 Series Air-cooled Hybrid Commercial Battery Storage System with 90% Round Trip Efficiency IP55 Ingress Rating and Modular Design
Brand: Wincle Energy Pte. Ltd.
SKU: Stars CA100 Series
Availability: InStock

Brand Name:	Wenergy
Model Number:	Stars CA100 Series
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Certification:

IEC/EN 62619,IEC 62477,IEC 60529,IEC 61000-6-2,IEC 61000-6-4,UN38.3

Cell Type:

LFP/314Ah

Cycle Life:

≥8,000 Cycles

Max.Round Trip Efficiency:

90%

Communication:

Modbus TCP/IP

Fire Suppression System:

Aerosol

Ingress Rating:

IP55

Fire Suppression:

Aerosol

Highlight:

90% Round Trip Efficiency Commercial Battery Storage System

IP55 Ingress Rating Energy Storage Cabinet

Modular Design Battery Energy Storage System

Product Description

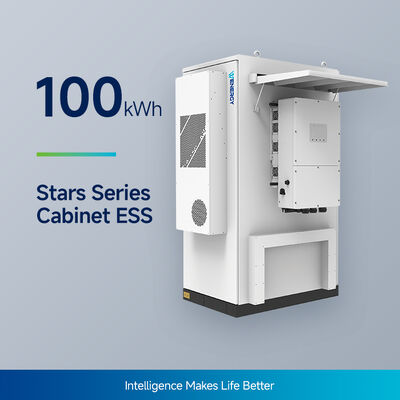

Stars CA100 Series Air-cooled Hybrid Cabinet (50kW/100kWh; 60kW/120kWh)

Key Highlights

Economical and Efficient

RTE up to 90%, DOD up to 100%

Compact & Convenient

0.96m² footprint, easy to transport and install

Expandable & Modular

Easy modular design supports parallel connection for convenient system expansion

Versatile

Supports multiple brands of hybrid inverter, with higher selectivity

Safe & Reliable

IP55, optimized ventilation design, temperature difference within 6℃

PV Pluggable

Support PV connection, with higher integration

Self-developed

LFP314Ah battery cell system integration, leading cost advantage, 3S fusion

Easy O&M

Support multiple ways of operation and maintenance, including on-site and cloud

Product Parameters

Battery Cabinet Specifications

Parameter	Stars CA100	Stars CA120
Cell Type	LFP/314Ah	LFP/314Ah
Pack Configuration	20.096 kWh/1P20S	20.096 kWh/1P20S
System Configuration	100.48 kWh/1P100S	120.576 kWh/1P120S
Rated DC Voltage	320V	384V
DC Voltage Range	280～360V	336～432V
Max. Charge/Discharge Rate	0.5P	0.5P
Max. Depth of Discharge	100% (25±2℃)	100% (25±2℃)
Cycle Life	≥8,000 cycles	≥8,000 cycles

PV Input Specifications

Parameter	Stars CA100	Stars CA120
Max. Input Power	59.8kW, 60kW, 80kW, 98kW, 100kW	59.8kW, 60kW, 80kW, 98kW, 100kW
PV Voltage Range	150～850V	150～850V
MPPT	3, 4	3, 4
Max. Input Current	40A3, 40A4	40A3, 40A4

AC Side Specifications

Parameter	Stars CA100	Stars CA120
Rated Output Power	29.9kW, 30kW, 40kW, 49kW, 50kW	29.9kW, 30kW, 40kW, 49kW, 50kW, 60kW
Rated AC Voltage	400V	400V
AC Voltage Range	±15%	±15%
Grid Type	3W+N+PE	3W+N+PE
Rated Frequency	50Hz/60Hz	50Hz/60Hz
Power Factor	0.991-0.8～+0.8	0.991-0.8～+0.8
THDi	≤3%	≤3%
DC Ratio	<0.5%lpn	<0.5%lpn

General Specifications

Max. Round Trip Efficiency: 90%
Communication: Modbus TCP/IP
Fire Suppression System: Aerosol
Ingress Rating: IP55
Cooling: Air Cooling
Operating Temperature: -25℃~55℃ (Derating after 45℃)
Anticorrosion Rating: C4 (C5 optional)
Humidity: 0~95%RH (non-condensing)
Altitude: 3000m (Derating above 2000m)
Dimensions (W*D*H): 800*1,200*2,100 mm (Foundation) / 1,536*1,377*2,100mm (Entire)
Weight: 1200 kg

Safety/EMC Compliance

Grid Code: UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4
Additional Standards: EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11
