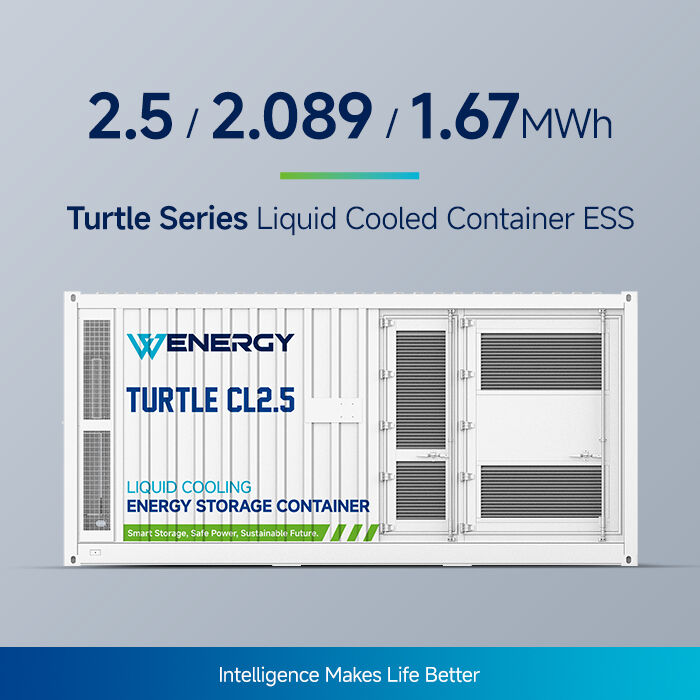

(Grid-Tied Version) Turtle CL2.5 Series AC/DC Integrated Containerized BESS

Name: (Grid-Tied Version) Turtle CL2.5 Series AC/DC Integrated Containerized BESS
Brand: Wincle Energy Pte. Ltd.
SKU: Turtle CL2.5 Series
Availability: InStock

Brand Name:	Wenergy
Model Number:	Turtle CL2.5 Series
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Battery Type:

LFP 314Ah

AC Rated Input Power:

1000kW

Rated Voltage:

Determined By PCS Voltage

IP Protection Level:

IP54(Battery Compartment)

Corrosion-proof Grade:

C4H

Cooling Type:

Intelligent Liquid Cooling(Automatic Refilling Function)

Cooling Type:

Intelligent Liquid Cooling(Automatic Refilling Function)

Highlight:

1000kW AC Rated Input Power Containerized BESS

Intelligent Liquid Cooling Commercial Battery Storage System

Multi-voltage Compatibility Grid-Tied Energy Storage System

Product Description

(Grid-Tied Version) Turtle CL2.5 Series AC/DC Integrated Containerized BESS

Designed for commercial and industrial grid-connected energy storage and PV-plus-storage projects, this version supports multiple AC voltage platforms and is suitable for peak shaving, demand management, PV self-consumption, and grid support applications.

Key Features

Multi-Voltage Compatibility Supports 400V / 690V / 800V grid connection for versatile deployment.

PV-Plus-Storage Ready Enhances PV self-consumption and improves project returns through integrated design.

Weak-Grid Adaptability Maintains stable operation under challenging grid conditions.

Streamlined Configuration Simplified AC-side design optimized for standard commercial and industrial grid-tied projects.

Technical Specifications

Parameter Category	Turtle CL2.5	Turtle CL2.089	Turtle CL1.67
DC Side Parameters
Battery Type	LFP 314Ah	LFP 314Ah	LFP 314Ah
Configuration	2.507MWh/6P416S	2.089MWh/5P416S	1.67MWh/4P416S
DC Voltage Range	1164.8V～1497.6V	1164.8V～1497.6V	1164.8V～1497.6V
PCS Parameters
Quantity	6	5	4
Voltage	400/690/800V	400/690/800V	400/690/800V
Power	750/1290/1500kW	625/1075/1250kW	500/860/1000kW
Grid Port
AC Rated Input Power	1000kW
Rated Voltage	400V/690V/800V, 50/60Hz
PV Port
AC Rated Input Power	1000kW
Rated Voltage	Determined by PCS Voltage
Load Port
AC Rated Output Power	750/1000kW	625/1000kW	500/860/1000kW
Rated Voltage	Determined by PCS Voltage
Basic System Parameters
IP Protection Level	IP54 (Battery Compartment)
Corrosion-proof Grade	C4H
Cooling Type	Intelligent Liquid Cooling (Automatic Refilling Function)
Operation Temp. Range	-25℃~55℃
Working Altitude	≤2000m (>2000m Derating)
Communication Interface	CAN, RS485, Ethernet
Dimension (WDH)	605824382896mm
Fire Safety Configuration	Aerosol Fire Protection, Smoke/Temperature Detection, Explosion-proof Ventilation
Weight	26.5t	24t	21.5t
