96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling

96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling

Brand Name:	Wenergy
Model Number:	Stars 192pro-125
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Certification:

UN38.3,IEC 62619,IEC/EN 62619,IEC 60730-1,IEC 63056,IEC/EN 61000,IEC 60529,IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer),UL1973,UL9540,UL9540A

Rated Energy:

96.46kWh

DC Voltage Range:

240~350.4V

Rated Power:

125kW

AC Rated Voltage:

400V

Rated Output Frequency:

50Hz

IP Protection Grade:

IP55

Corrosion-proof Grade:

C4H

Highlight:

96.46kWh Commercial Battery Storage Systems

Liquid Cooling Commercial Battery Storage Systems

All In One Commercial Battery Storage Systems

Product Description

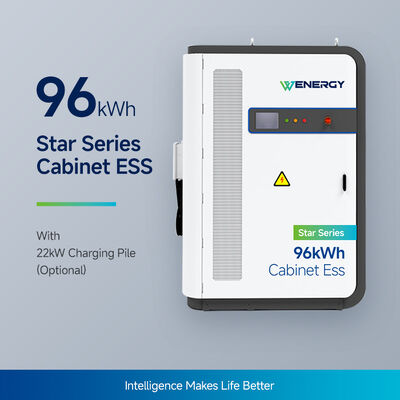

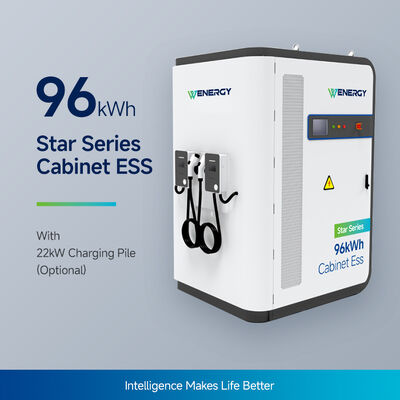

Star192 All-in-One Energy Storage System

96kWh integrated solar + storage + diesel + charging solution providing a comprehensive multi-energy hybrid system for diverse applications.

Application Scenarios

Residential Energy Storage: Store solar energy for home use, reducing electricity bills and providing backup power during outages.
Commercial Buildings: Support shopping malls, office buildings, and hospitals by ensuring uninterrupted power supply and lowering energy costs.
Public Facilities: Provide reliable power for schools, government buildings, and remote areas, ensuring continuous operations.
Industrial Applications: Integrate with solar panels and diesel generators to store excess energy, reducing grid dependency and ensuring critical equipment remains operational.
Electric Vehicle (EV) Charging: Directly charge electric vehicles using stored energy, enhancing energy efficiency and supporting sustainable transportation.

System Benefits

Cost Savings

Reduce electricity expenses by storing energy during low-demand periods.

Energy Independence

Minimize reliance on traditional power grids.

Uninterrupted Power

Ensure continuous operation of essential systems and equipment.

Sustainability

Support renewable energy integration and reduce carbon footprint.

Technical Specifications

Standard: PCS, DCDC | Optional: MPPT, STS, ATS, Charging Pile (22kw)

Model	Star192 96.46kWh (Integrated PV, ESS, Diesel and EV Charging Capabilities)
Rated Energy	96.46kWh
Voltage Range	240~350.4V
Rated Power	125kW
Rated Output Frequency	50Hz
IP Protection Grade	IP55
Corrosion-proof Grade	C4H
Cooling Type	Liquid Cooling
Noise	<75dB (1m Away from System)
Dimension	W1600D1435H2200mm
Communication Interface	Ethernet
Communication Protocol	Modbus TCP/IP

*Standard: PCS, DCDC. Optional: MPPT, STS, ATS, Charging Pile

System Configuration

The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.

System Layout Components

No.	Identifier	Component Name
1	A	Load Breaker 01 (optional)
2	B	Load Breaker 02
3	C	Main Breaker 01
4	D	Main Breaker 02 (optional)
5	E	STS (optional)
6	F	Photovoltaic Converter MPPT (optional)
7	G	Voltage Converter DCDC
8	H	PCS
9	I	Liquid Cooling Unit
10	J	EMS
11	K	PDU
12	L	Battery System (optional 2 to 4 packs)
13	M	Multi-Power Transfer Switch ATS (optional)
14	N	Fire Suppression System
15	P	Display Screen
16	Q	Indicator Light
17	R	Emergency Stop Button
18	S	AC Charging Pile (optional)

Certifications & Compliance

International General Certifications

UN38.3
IEC 62619
IEC/EN 62619

Functional Safety and Energy Efficiency Certifications

IEC 60730-1
IEC 63056
IEC/EN 61000

Structural and Protection Certifications

IEC 60529

European Market Certifications

IEC 62040 or 62477
RF/EMC
UKCA (IEC 62477-1)
UKCA (CE-EMC Transfer)

North American Market Certifications

UL1973
UL9540
UL9540A

Tailored Energy Solutions for Businesses

Within our manufacturing facility, we specialize in researching and producing battery energy storage systems, offering OEM and ODM services alongside our standard product line.

Why Partner with Us

Origin Manufacturers: We are your direct source for top-tier products.
Customized Solutions: Tailored to meet your unique specifications.
Business-Centric Focus: Addressing customer pain points, including unstable grid quality, economic viability, safety, and stability.

ARE YOU LOOKING FOR THE RIGHT PARTNER TO TRANSFORM YOUR ENERGY STORAGE STRATEGY?

Contact us today to learn how our solutions can meet your needs.
Request a quote or schedule a consultation with our experts!
