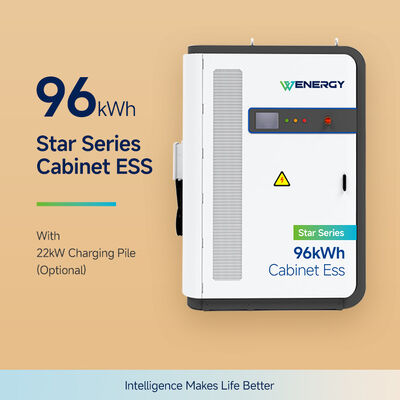

| Brand Name: | Wenergy |
| Model Number: | Star 192pro/60 96.46kWh |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Model | Stars CL192Pro-125 |
| Rated Energy | 96.46kWh |
| DC Voltage Range | 240~350.4V |
| Rated Power | 125kW |
| AC Rated Voltage | 400V |
| Rated Output Frequency | 50Hz |
| IP Protection Grade | IP55 |
| Corrosion-proof Grade | C4H |
| Cooling Type | Liquid Cooling |
| Noise | <75dB(1m Away from System) |
| Dimension(W*D*H) | (1800±10)*(1435±10)*(2392±10)mm |
| Communication Interface | Ethernet |
| Communication Protocol | Modbus TCP/IP |
| System Certification | IEC 62619, IEC 60730-1, IEC 63056, IEC/EN 62477, IEC/EN 61000, UL1973, UL 9540A, CE Marking, UN 38.3, TÜV Certification, DNV Certification |
| Standard Components | PCS, DCDC |
| Optional Components | MPPT (60kW), STS, ATS, AC EV Charger (22kW*2) |
| No. | Identifier | Component Name |
|---|---|---|
| 1 | A | Load Breaker 01 (optional) |
| 2 | B | Load Breaker 02 |
| 3 | C | Main Breaker 01 |
| 4 | D | Main Breaker 02 (optional) |
| 5 | E | STS (optional) |
| 6 | F | Photovoltaic Converter MPPT (optional) |
| 7 | G | Voltage Converter DCDC |
| 8 | H | PCS |
| 9 | I | Liquid Cooling Unit |
| 10 | J | EMS |
| 11 | K | PDU |
| 12 | L | Battery System (optional 2 to 4 packs) |
| 13 | M | Multi-Power Transfer Switch ATS (optional) |
| 14 | N | Fire Suppression System |
| 15 | P | Display Screen |
| 16 | Q | Indicator Light |
| 17 | R | Emergency Stop Button |
| 18 | S | AC Charging Pile (optional) |
