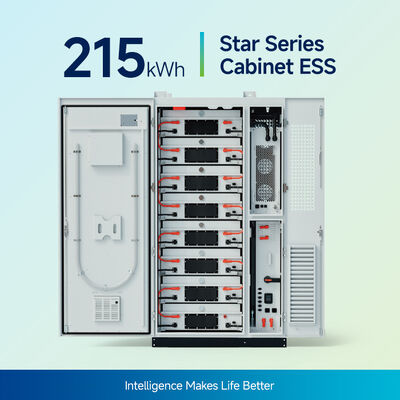

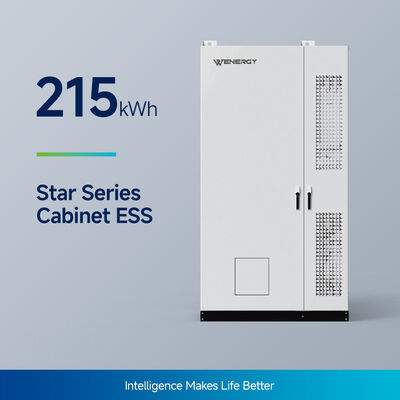

| Brand Name: | Wenergy |
| Model Number: | Star CL215 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Parameter | Specification |
|---|---|
| Battery Type | LFP |
| Cell Configurations | 1P240S |
| Rated Capacity (Ah) | 280 |
| Rated Energy (KWh) | 215 |
| Rated Voltage (V) | 768 |
| Rated Power (KW) | 100 |
| Rated Charge/Discharge Rate | 0.5C |
| Voltage Range (V) | 672～864 |
| Standard Charge/Discharge Current (A) | 140/140 |
| Max Current | 170A |
| Cooling Type | Liquid Cooling |
| Coolant | Ethylene glycol: aqueous solution (50%v:50%v) |
| Life Cycles | 6000 |
| Fire Suppression | NOVEC1230/FM200, optional |
| Detector | Smoke, heat & flammable gas detectors |
| Parameter | Specification |
|---|---|
| Rated AC power | 100kW |
| AC overload Capacity(KVA) | 1.1 times long-term, 1.2 times 1min |
| Connection Mode | Three-Phase Four-Wire System |
| On-grid AC Voltage | 380V/400V(-15%～＋15%) |
| On-grid Frequency | 50Hz/60Hz±2.5Hz |
| Total Harmonic Distortion | ≤3% (the full load) |
| Power Factor | -0.99~+0.99 |
| DC component of current | ≤0.5% |
| Charge discharge conversion time | ＜100ms |
| Max. Conversion Efficiency | ≥98% |
| Cooling Type | Forced air Cooling |
| Parameter | Specification |
|---|---|
| Charging Operating Temperatures Range (°C) | -30°C~55°C(>45°C, derating) |
| Discharging Operating Temperatures Range (°C) | -30°C~55°C(>45°C, derating) |
| Storage Temperature Range - Short term (<1month)(°C) | -30°C～60°C |
| Storage Temperature Range - Long term (<1year)(°C) | 0°C～35°C |
| Noise | ≤75dB |
| Dimensions(W*D*H)(mm) | 935*1250*2340mm |
| Weight(T) | 2.7±0.1 |
| Anti-corrosion | C4/C5 (optional) |
| IP Rating | Battery compartment: IP65 Electrical compartment: IP54 |
| Relative Humidity | 0-95% (no condensing) |
| Standard Altitude(m) | ≤2000(derating, > 2000) |
| Efficiency | ≥86% |
| Communication Interface | CAN, Ethernet |
| Communication Protocol | Modbus TCP/RTU |
| Feature | Availability |
|---|---|
| Peak load shifting | Yes |
| Demand control | Yes |
| Economic operation mode | Yes |
| Reactive power regulation | Yes |
| Power grid dispatch connection | Yes |
| Remote dispatch connection | Yes |
| Local data storage | Yes |
| Anti-reflux | Optional |
| Component | Standards |
|---|---|
| BMS | UL60730, GB/T34131-2017 |
| Battery | GB/T36276-2018, IEC62619, UL1973, UL9540A |
| PCS | CE; EN50549-1:2019+AC.2019-04; CE10-21; CE10-16; NRS 097-21-1: :2017; EN50549+Deviations of Netherlands; C10/11: 2019; GB/T 34120; GB/T 34133 |
Within our manufacturing facility, we specialize in the research and production of battery energy storage systems, offering OEM and ODM services alongside our standard product line.
