| Brand Name: | Wenergy |
| Model Number: | Stars 215 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
Commercial & Industrial | Microgrid
| DC Specifications | |
|---|---|

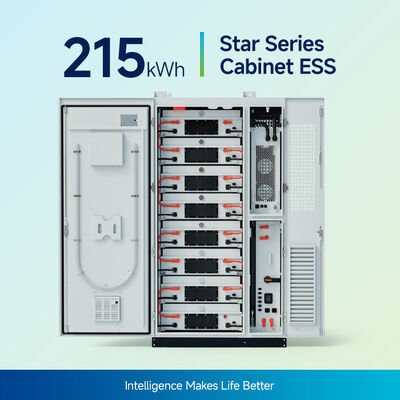

| Model | Stars CL215 |
| Battery Type | LFP |
| Cell Configurations | 1P240S |
| Rated Capacity (Ah) | 280 |
| Rated Energy (KWh) | 215 |
| Rated Voltage (V) | 768 |
| Rated Power (KW) | 100 |
| Rated Charge/Discharge Rate | 0.5C |
| Voltage Range (V) | 672～864 |
| Standard Charge/Discharge Current (A) | 140/140 |
| Max Current | 170A |
| Cooling Type | Liquid Cooling |
| Coolant | Ethylene glycol: aqueous solution (50%v:50%v) |
| Life Cycles | 6000 |
| Fire Suppression | NOVEC 1230 or FM-200 (Optional) |
| Detector | Smoke, heat & flammable gas detectors |
| AC Specifications | |
|---|---|
| Rated AC power | 100kW |
| AC overload Capacity(KVA) | 1.1 times long-term, 1.2 times 1min |
| Connection Mode | Three-Phase Four-Wire System |
| On-grid AC Voltage | 380V/400V(-15%～＋15%) |
| On-grid Frequency | 50Hz/60Hz±2.5Hz |
| Total Harmonic Distortion | ≤3% (the full load) |
| Power Factor | -0.99~+0.99 |
| DC component of current | ≤0.5% |
| Charge discharge conversion time | ＜100ms |
| Max. Conversion Efficiency | ≥98% |
| Cooling Type | Forced air Cooling |
| System Specifications | |
|---|---|
| Charging Operating Temperatures Range (°C) | -30°C~55°C(>45°C, derating) |
| Discharging Operating Temperatures Range (°C) | -30°C~55°C(>45°C, derating) |
| Storage Temperature Range - Short term (<1month)(°C) | -30°C～60°C |
| Storage Temperature Range - Long term (<1year)(°C) | 0°C～35°C |
| Noise | ≤75dB |
| Dimensions(W*D*H)(mm) | 935*1250*2340mm |
| Weight(T) | 2.7±0.1 |
| Anti-corrosion | C4/C5 (optional) |
| IP Rating | Battery compartment: IP65 Electrical compartment: IP54 |
| Relative Humidity | 0-95% (no condensing) |
| Standard Altitude(m) | ≤2000(derating, > 2000) |
| Efficiency | ≥86% |
| Communication Interface | CAN, Ethernet |
| Communication Protocol | Modbus TCP/RTU |
| Operation Modes | |
|---|---|
| Peak load shifting | Yes |
| Demand control | Yes |
| Economic operation mode | Yes |
| Reactive power regulation | Yes |
| Power grid dispatch connection | Yes |
| Remote dispatch connection | Yes |
| Local data storage | Yes |
| Anti-reflux | Optional |
| Certification Standards | |
|---|---|
| BMS | UL60730, GB/T34131-2017 |
| Battery | GB/T36276-2018, IEC62619, UL1973, UL9540A |
| PCS | CE; EN50549-1:2019+AC.2019-04; CE10-21; CE10-16; NRS 097-21-1: :2017; EN50549+Deviations of Netherlands; C10/11: 2019; GB/T 34120; GB/T 34133 |
Tailored Energy Solutions for Businesses
Within our manufacturing facility, we specialize in the research and production of battery energy storage systems, offering OEM and ODM services alongside our standard product line.
Contact us today to learn how our solutions can meet your needs.
Request a quote or schedule a consultation with our experts!
