| Brand Name: | wenergy |
| Model Number: | 06-VDA-2P6S-22.2v100Ah |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 / day |

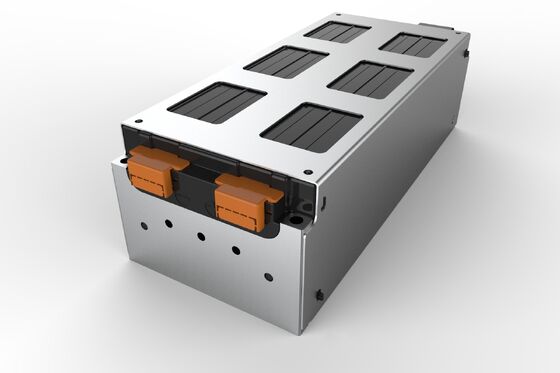

22.2V 100Ah Lithium Battery Module NCM VDA Standard 2.2KWh For Ev And Pick Up Truck
| No. |
Item
|
Performance |
|
| 1 |
Nominal Capacity
|
98Ah ,1C(25±2℃,3.0V~4.35V) | |
| 2 | Nominal Voltage | 22.2V | |
| 3 |
Charge Ending Voltage
|
Suggest cutting off the maximum voltage of a single unit to 4.3V | |
| 4 |
Discharge Ending Voltage
|
0℃≤temperature≤55℃ | Suggest cutting off the minimum voltage of a single unit to 3.0V |
| -30℃≤temperature＜0℃ | Suggest cutting off the minimum voltage of a single unit to 2.4V | ||
| 5 |
Standard Charging Method
|
25±2℃ 0.5C Charge the battery with a constant current until the highest voltage of the unit reaches 4.3V, and then charge it in a constant voltage mode until the charging current reaches ≤ 0.05C and stops | |
| 6 |
Max. Constant Charging Current
|
1C | |
| 7 |
Max. Pulse Charging Current
|
1.5C (25±5℃,50%SOC) ≤30S | |
| 8 |
Standard Discharging Current
|
25±2℃ 1C constant current discharge until the lowest single voltage reaches 3.0V |
|
| 9 |
Max. Constant Discharging Current
|
1C | |
| 10 |
Max. Pulse Discharging Current
|
3C (25±5℃) ≤30S | |
| 11 |
Operating environment
|
Charging: 0 ℃~55 ℃, max. 90% RH (charging conditions according to 3.4 charging mechanism) Discharge: -30 ℃~55 ℃, max. 90% RH (discharge conditions according to 3.4 discharge mechanism)
All of the above believe that there is no heating system. If there is a heating system, it should be considered based on the actual situation |
|
| 12 | Module weight | 10.3±0.3 kg | |
| 13 |
Energy Density
|
Around 215.5Wh/kg | |
| 14 | Insulation performance | ≥500MΩ | |
| 15 | pressure resistant performance | 2700VDC, leakage current<1 mA | |
Battery module Production line
Wenergy
From customized systems, standardized VDA modules to individual cells and battery cathode Material .we can offer several solutions to suitable for your application.
Battery Module :
We can produces standardized battery modules that demonstrates high productivity and flexibility.
Battery pack :
We can offers fully-integrated battery systems tailored to EV applications, along with a design and integration team that can develop and optimize systems to your unique specifications.
