| Brand Name: | Wenergy |

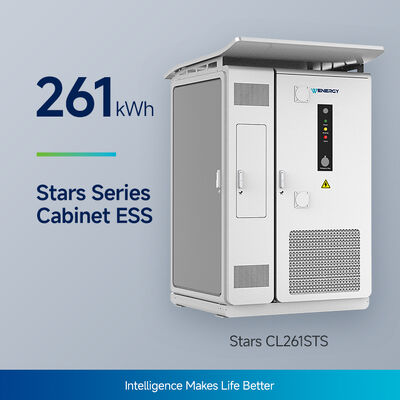

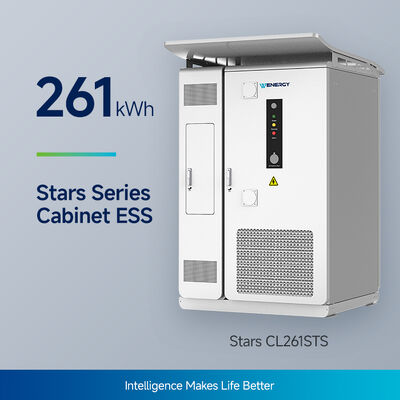

| Model Number: | Stars CL261STS |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Parameter | Stars CL261 | Stars CL261Pro | Stars CL261STS |
|---|---|---|---|
| Battery Type | LFP 3.2V/314Ah | ||
| Rated Energy | 261.2 kWh | ||
| Battery Configuration | 1P260S | ||
| DC Voltage Range | 728~936V | ||
| Load Power | 125kW | ||
| Grid Power | / | 187kW | 250kW |
| DG Power | / | 187kW | / |
| PV Input | / | 250kW(DC), 10MPPTs(20S)MC4, 150~950V | / |
| On/Off-Grid Switch Time | / | 10ms | / |
| IP Level | IP55 (Complete System) | ||
| Corrosion-Proof Grade | C4H | ||
| Cooling Type | Intelligent Liquid Cooling (with Automatic Refilling) | ||
| Operating Temp. Range | -35℃~55℃ (>45℃ Derating) | ||
| Operating Altitude | ≤2000m (>2000m Derating) | ||
| Relative Humidity | 0-95% (Non-condensing) | ||
| Noise | ≤70dB, ≤60dB (Silent Version) | ≤75dB | / |
| Communication Interface | LAN/RS485 | ||
| Communication Protocol | Modbus, IEC104, MQTT | ||
| Operating Modes | On-Grid, Off-Grid | On-Grid, Off-Grid, On/Off-Grid Switching | / |
| Dimensions (W*D*H) | 1012*1350*2270mm (±10mm) | 1520*1350*2270mm | / |
| Weight | ≤2.5t | ≤2.7t | ≤2.9t |
| Cycle Life | ≥8000 (EoL 70% SOH) | ||
| Installation | Floor-Mounted | ||
Pack-level Aerosol + Cluster-level Aerosol + Water Fire Suppression (Optional) + Explosion Venting (Optional) + Active Early Warning
